R & S is a leading manufacturer of rolling service doors, counter doors, and aluminum grilles. Our doors are manufactured to meet the need for secure, effective, space saving closures that are endurance tested while providing outstanding economy and value. A variety of mountings, operation methods, materials, and finish options are available. Contact us today to have a free on site evaluation of your service doors.

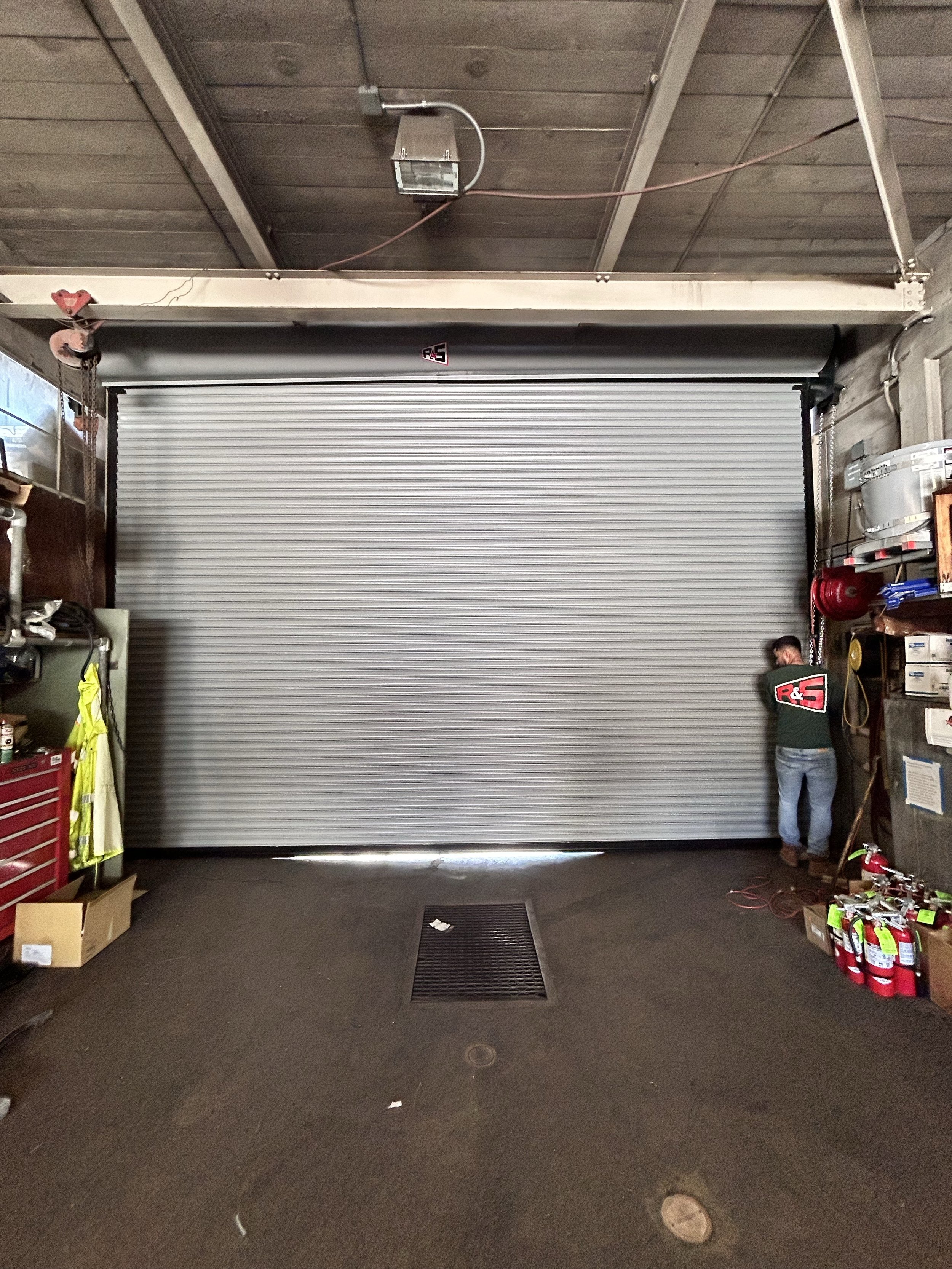

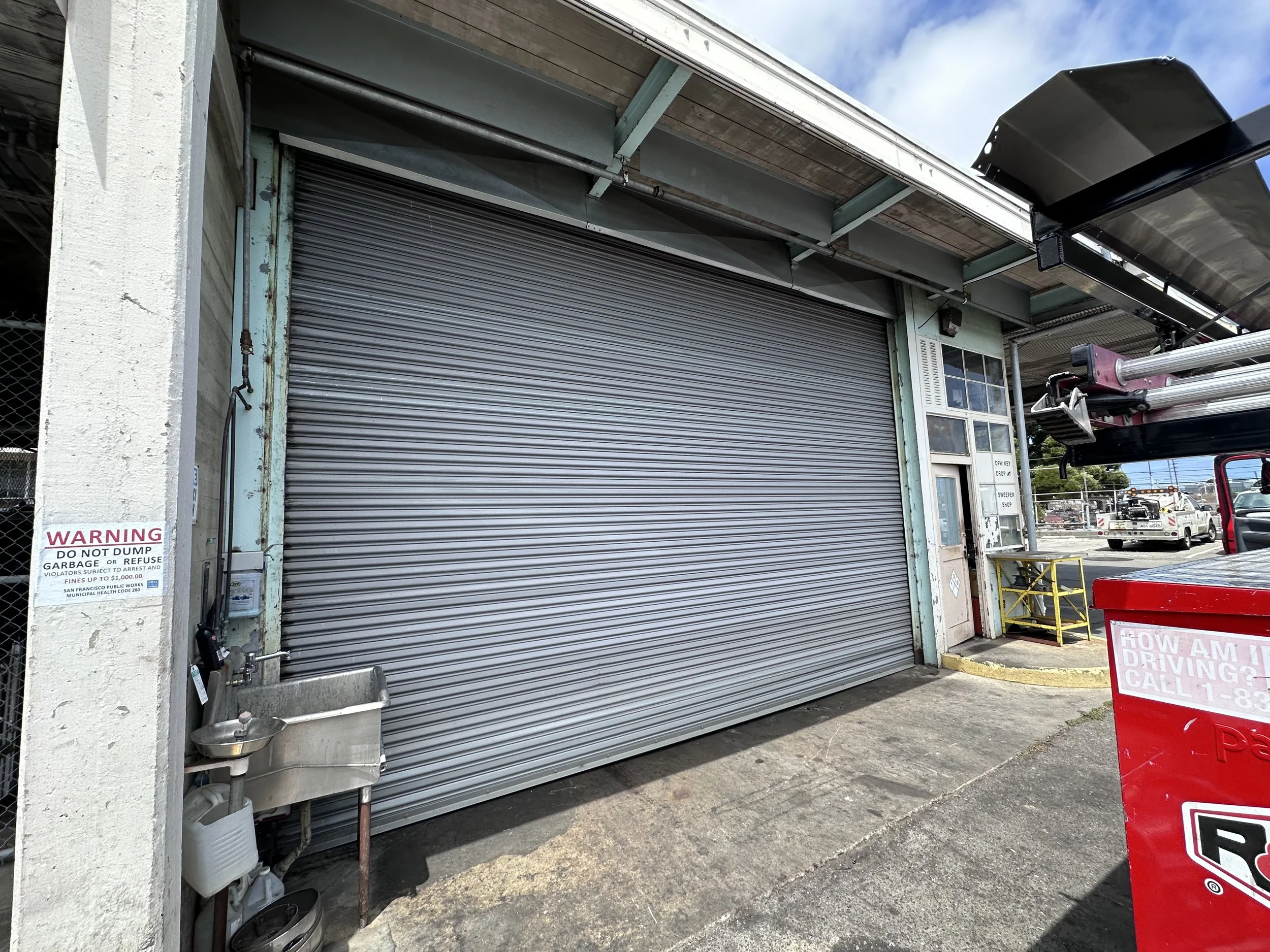

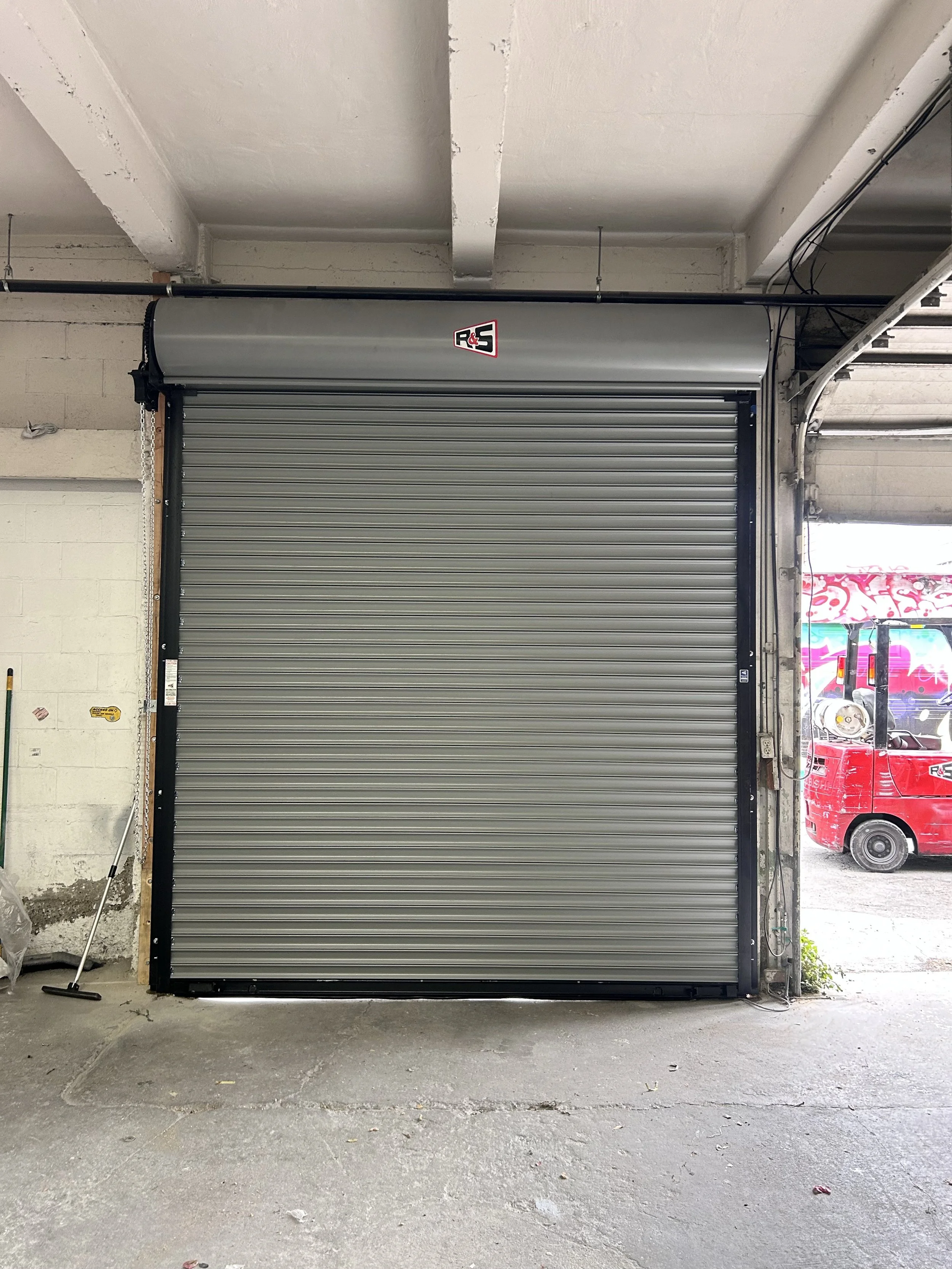

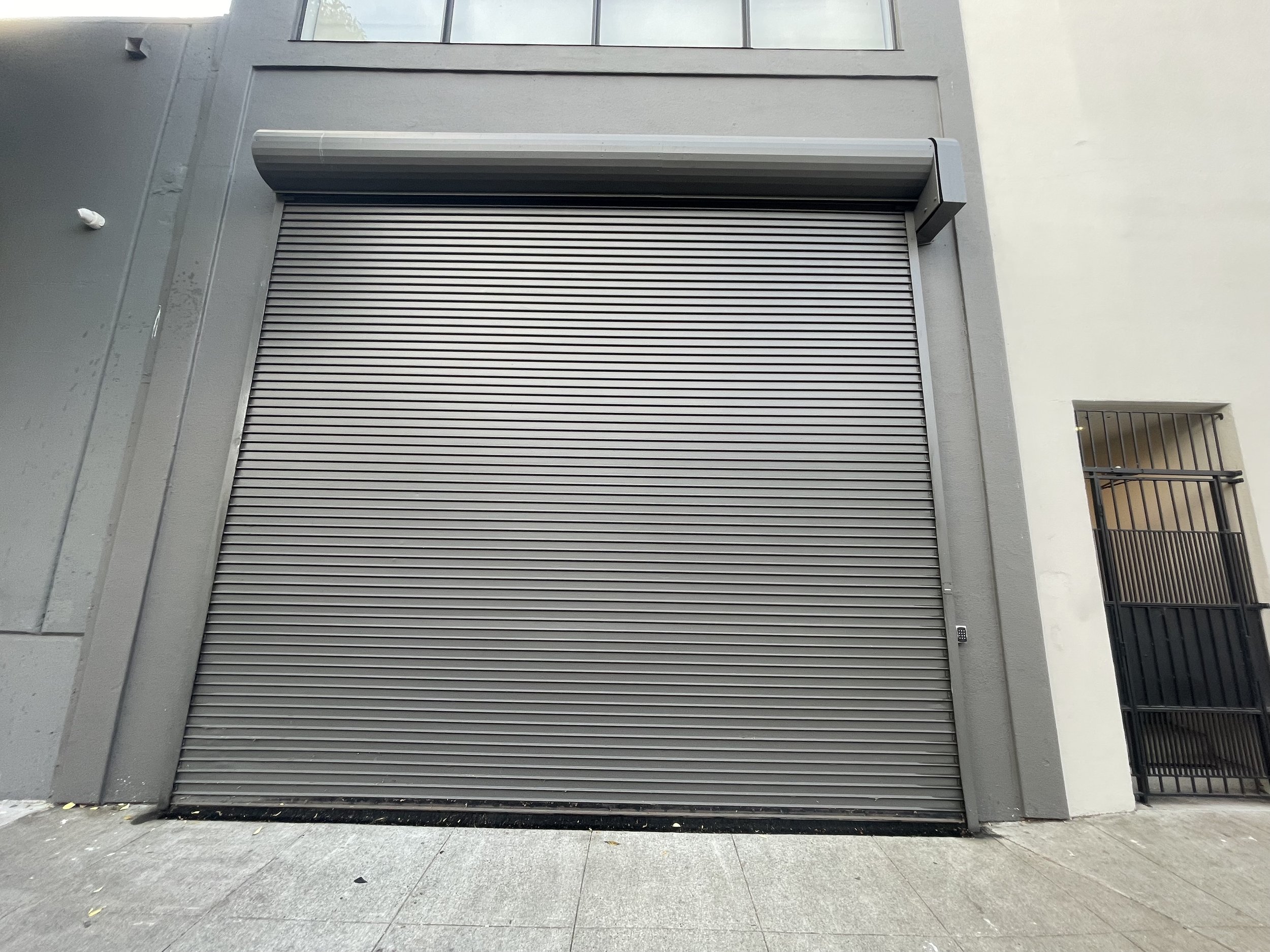

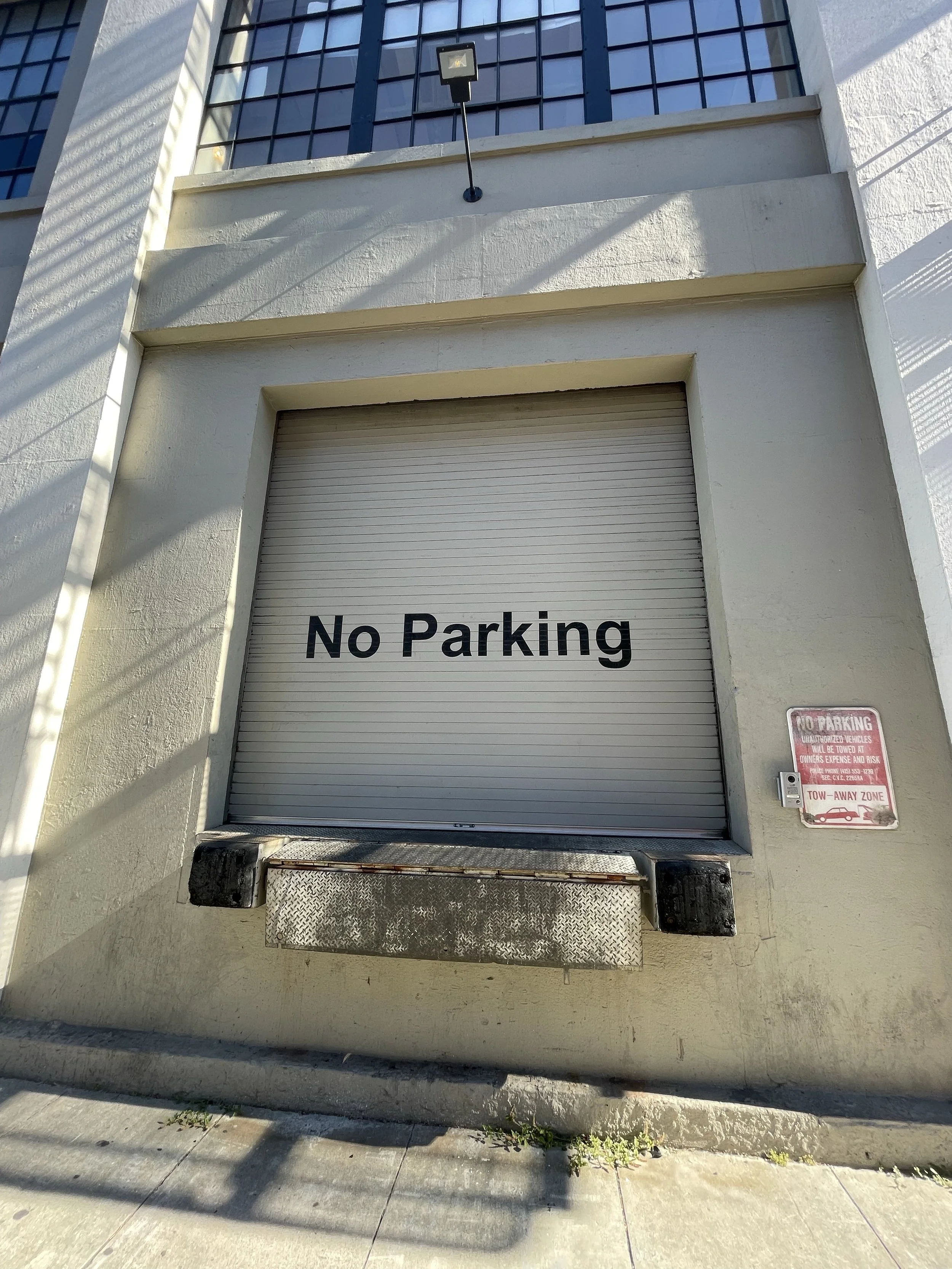

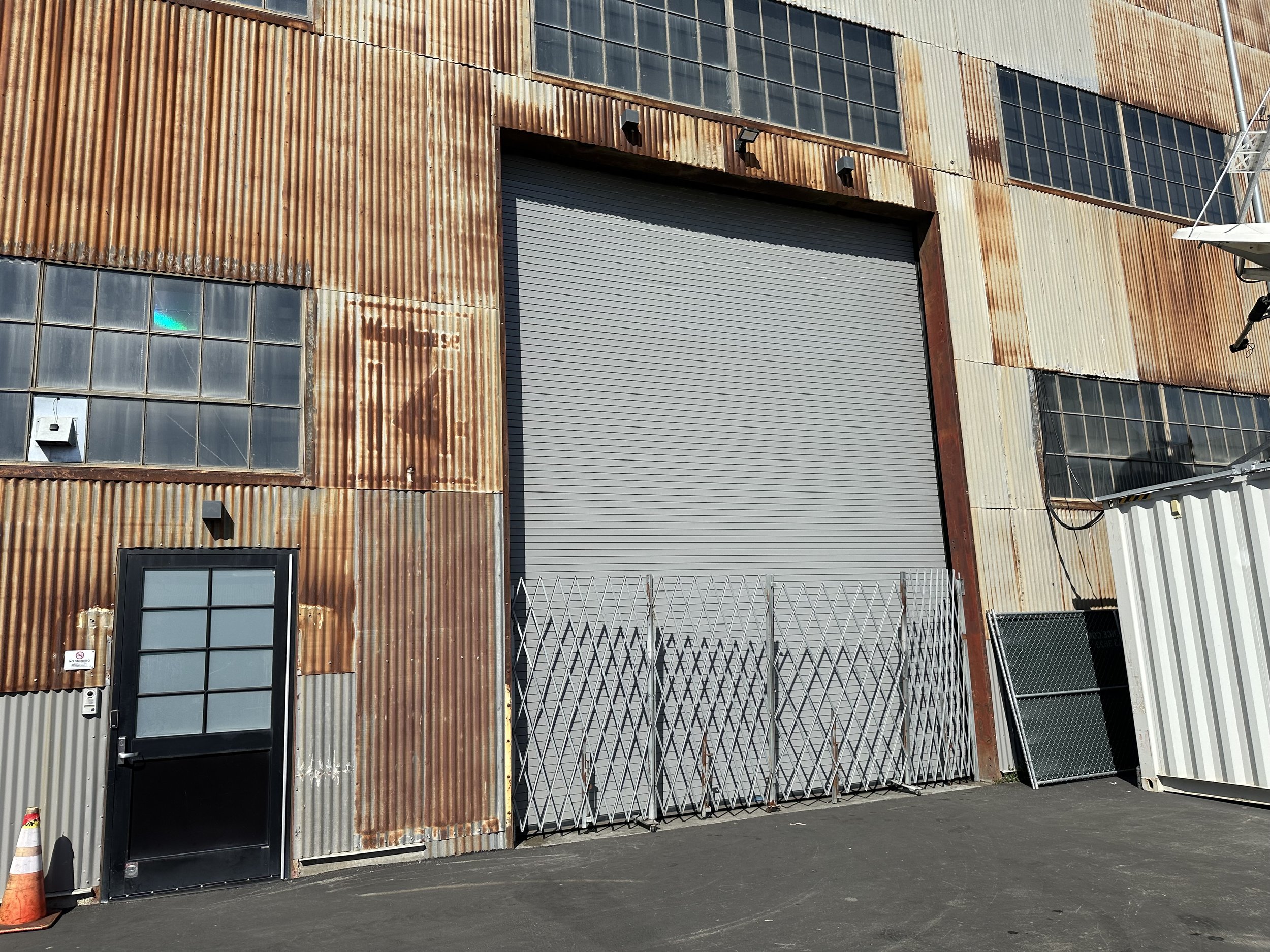

Heavy Duty Steel Rolling Service Doors

The R&S Heavy Service Duty door provides high security and durability offering years of maintenance free performance. Many options are offered with this model from perforated slat to the inclusion of a pass door or grille section.

All R&S doors are designed to withstand up to 80 mph winds and can be upgraded for more severe weather conditions. Curtains can be ordered in standard grey or in tan with contrasting black guides and foot piece.



Rolling-Steel-Doors-268x300 (1).jpg
Rolling-Steel-Doors2-224x300 (1).jpg

Features:

  • 6″ minimum diameter structural steel pipe barrel
  • Oil tempered torsion springs on continuous cold-rolled steel shaft
  • Steel plate brackets attach to wall angles
  • Interior or exterior, face of wall or between jamb mount
  • Prime-painted 24 gauge galvanized steel hood
  • Chain operation with cast iron gears
  • 22 gauge Interlocking prime-painted galvanized steel slats-(heavier gauges available)
  • structural steel angle guides and continuous wall angle mounting
  • Extruded aluminum foot piece with astragal

Click here for brochure


Standard Duty Service Door

The R&S Standard Duty door is an economical yet reliable service door affording many years of maintenance free performance. Many options are offered from perforated slat to the inclusion of a pass door or grille section. Please see the many options available and if there is need for higher cycle performance, greater wind resistance or increased security, please see our Heavy Duty Steel Service Door page below.

Features:

  • steel channel guides
  • 24 gauge interlocking prime painted galvanized steel slat curtain up to 16′ wide-22 gauge over 16 ‘ wide (heavier gauges available)
  • 24 gauge hood standard – upgrades of gauge available
  • 6″ minimum diameter structural steel pipe barrel
  • Oil tempered torsion springs on continuous cold-rolled steel shaft
  • Steel plate brackets attach to wall angles
  • Interior or exterior, face of wall or between jamb mount
  • Prime-painted galvanized steel hood
  • Chain operation with cast iron gears
  • Interlocking prime-painted galvanized steel slats
  • Extruded aluminum foot piece with astragal

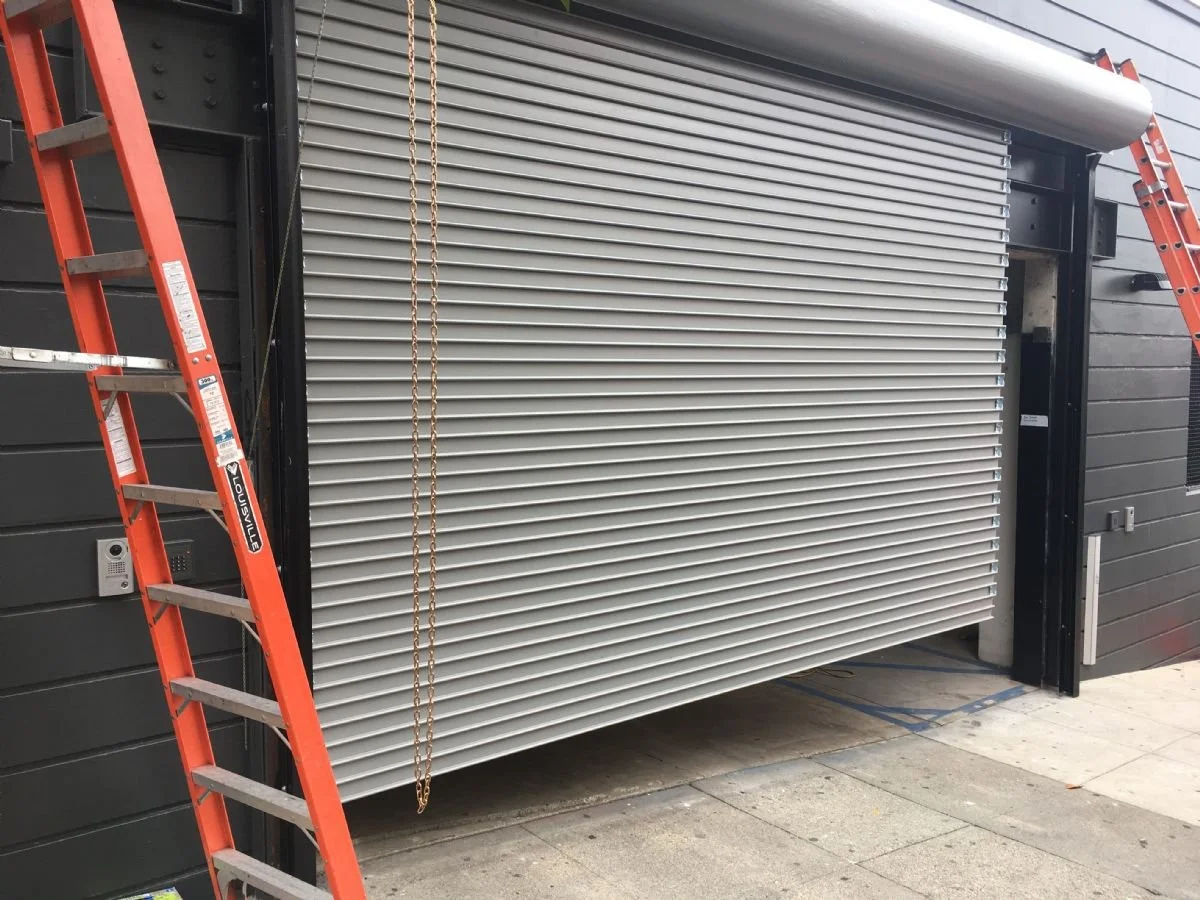

“Climate Guard” Weather stripped Service Doors

When an application requires protection against the elements the “Climate-Guard” service door is the solution. Rain, dust and wind are kept at bay by vinyl weather stripping at the foot piece, guides and hood. Designed for sizes up to 30′ wide and 30′ high these doors are constructed to weather the storm and provide years of worry free service.

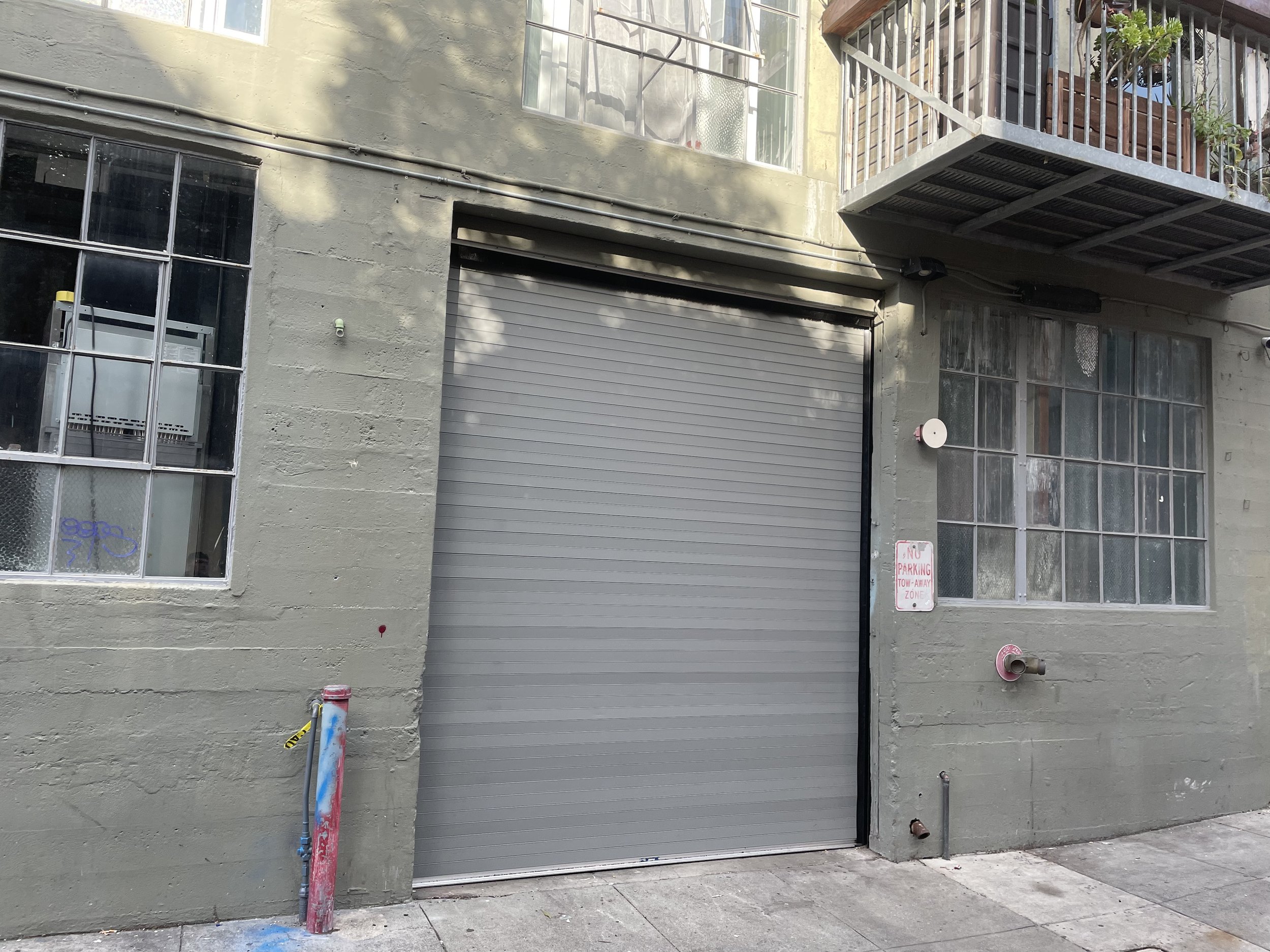

“Thermal Guard” Insulated Service Doors

When an application requires protection against the elements the “Climate-Guard” service door is the solution. Rain, dust and wind are kept at bay by vinyl weather stripping at the foot piece, guides and hood. Designed for sizes up to 30′ wide and 30′ high these doors are constructed to weather the storm and provide years of worry free service.

All R&S doors are designed to withstand up to 80 mph winds and can be upgraded for more severe weather conditions. Curtains can be ordered in standard grey or in tan with contrasting black guides and foot piece. A galvanized steel finish is also offered providing the look and protection of stainless steel without the cost.

Click here for brochure
